| HOME > PRODUCTS > Round Bar |
|
|
|
 |

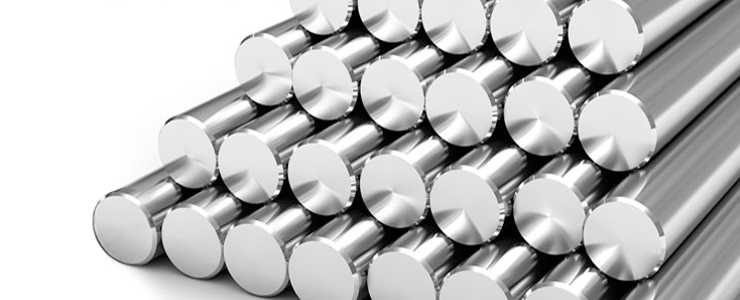

| Round Bar |
| |
 |
| |
| Product Detail |
| Specifications of Stainless Steel Bar |
 |
Standard: GB ASTM, JIS, etc |
|
Grade: 200,300,400series |
|
Diameter: 6mm-230mm |
|
Shape Manufactured: Flat Bar, Square Bar, Round Bar, Rings, Hollows, Blocks and special Shapes. |
|
Length: 12m max. |
|
Surface finish: 2B, BA, Hair Line, No.1, No.4, Mirror Finish |
|
Techniques: Hot-rolled, cold-drawn, Centerless Grinding, forged, etc. |
|
| |
| Technical Information |
| Grade Datasheet of Stainless Steel Bar |

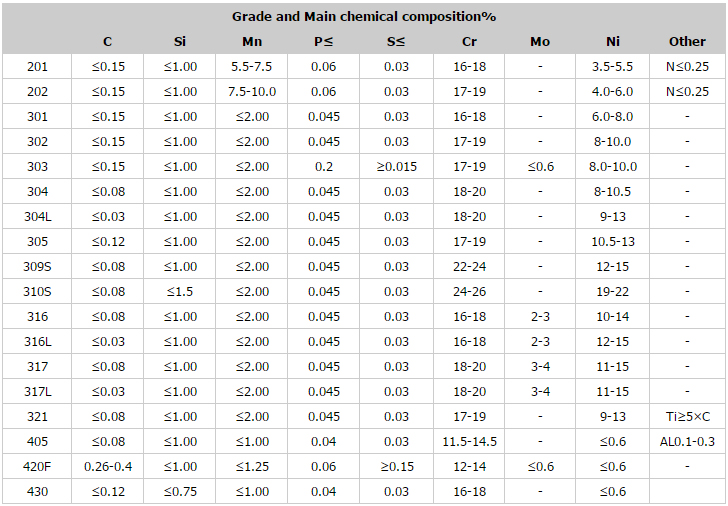

| Grade and Main chemical composition% |
| Grade |
C |
Si |
Mn |
P ≤ |
S ≤ |
Cr |
Mo |
Ni |
Other |
| 201 | ≤ 0.15 | ≤ 1.00 | 5.5-7.5 | 0.06 | 0.03 | 16-18 | - | 3.5-5.5 | N ≤ 0.25 |
| 202 | ≤ 0.15 | ≤ 1.00 | 7.5-10.0 | 0.06 | 0.03 | 17-19 | - | 4.0-6.0 | N ≤ 0.25 |
| 301 | ≤ 0.15 | ≤ 1.00 | ≤ 2.00 | 0.045 | 0.03 | 16-18 | - | 6.0-8.0 | - |
| 304 | ≤ 0.08 | ≤ 1.00 | ≤ 2.00 | 0.045 | 0.03 | 18-20 | - | 8-10.5 | - |
| 304L | ≤ 0.03 | ≤ 1.00 | ≤ 2.00 | 0.045 | 0.03 | 18-20 | - | 9-13 | - |
| 310S | ≤ 0.08 | ≤ 1.5 | ≤ 2.00 | 0.045 | 0.03 | 24-26 | - | 19-22 | - |
| 316 | ≤ 0.08 | ≤ 1.00 | ≤ 2.00 | 0.045 | 0.03 | 16-18 | 2-3 | 10-14 | - |
| 316L | ≤ 0.03 | ≤ 1.00 | ≤ 2.00 | 0.045 | 0.03 | 16-18 | 2-3 | 12-15 | - |
| 321 | ≤ 0.08 | ≤ 1.00 | ≤ 2.00 | 0.045 | 0.03 | 17-19 | - | 9-13 | Ti ≥ 5×C |
| 430 | ≤ 0.12 | ≤ 0.75 | ≤ 1.00 | 0.04 | 0.03 | 16-18 | - | ≤ 0.6 | - |
|
| |
|
|
