| Tubes & Pipes |
| |
|
|
| |
 |

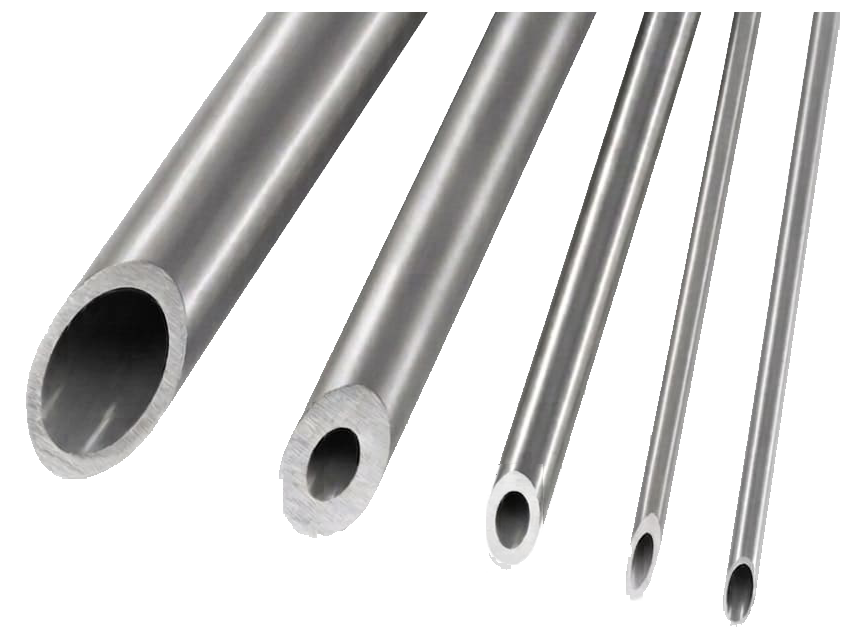

| Instrument Tube |
| Material |
 Stainless steel |
304/304L, 316/316L, 316LN, 316Ti, 310S, 321, 317L |
| Duplex |
S31803, S32205, S32750 |
| Alloy metal |
TITANIUM GR.2, ALLOY 600, ALLOY 625, ALLOY 825 |
|
| |
| Application code |
| ASTM, ASME, AISI, DIN, JIS, KS |
| |
| General size of Instrument tube |
| No |
O.D x W.T |
| 1 |
6mm X 1.0 mm |
| 2 |
6mm X 1.5 mm |
| 3 |
8mm X 1.0 mm |
| 4 |
8mm X 1.2 mm |
| 5 |
8mm X 1.5 mm |
| 6 |
8mm X 2.0 mm |
| 7 |
10mm X 1.0 mm |
| 8 |
10mm X 1.2 mm |
| 9 |
10mm X 1.5 mm |
| 10 |
10mm X 2.0 mm |
| 11 |
12mm X 1.0 mm |
| 12 |
12mm X 1.2 mm |
| 13 |
12mm X 1.5 mm |
| 14 |
12mm X 2.0 mm |
| 15 |
15mm X 1.0 mm |
| 16 |
15mm X 1.2 mm |
| 17 |
15mm X 1.5 mm |
| 18 |
15mm X 2.0 mm |
| 19 |
15mm X 2.5 mm |
| 20 |
16mm X 1.5 mm |
| 21 |
16mm X 2.0 mm |
| 22 |
16mm X 2.5 mm |
| 23 |
18mm X 1.2 mm |
| 24 |
18mm X 1.5 mm |
| 25 |
18mm X 2.0 mm |
| 26 |
20mm X 1.0 mm |
| 27 |
20mm X 1.5 mm |
| 28 |
20mm X 2.0 mm |
| 29 |
20mm X 2.5 mm |
| 30 |
22mm X 1.5 mm |
|
| No |
O.D x W.T |
| 31 |
|
22mm X 2.0 mm |
| 32 |
|
22mm X 2.5 mm |
| 33 |
|
25mm X 2.0 mm |
| 34 |
|
25mm X 2.5 mm |
| 35 |
|
25mm X 3.0 mm |
| 36 |
|
28mm X 2.0 mm |
| 37 |
|
28mm X 2.5 mm |
| 38 |
|
28mm X 3.0 mm |
| 39 |
|
30mm X 2.0 mm |
| 40 |
|
30mm X 2.5 mm |
| 41 |
|
30mm X 3.0 mm |
| 42 |
|
30mm X 4.0 mm |
| 43 |
|
35mm X 2.0 mm |
| 44 |
|
35mm X 2.5 mm |
| 45 |
|
35mm X 3.0 mm |
| 46 |
|
38mm X 3.0 mm |
| 47 |
|
38mm X 4.0 mm |
| 48 |
1/8 inch X 0.025 inch |
3.18mm X 0.71 mm |
| 49 |
5/16 inch X 0.035 inch |
7.94mm X 0.89 mm |
| 50 |
1/4 inch X 0.028 inch |
6.35mm X 0.71 mm |
| 51 |
1/4 inch X 0.035 inch |
6.35mm X 0.89 mm |
| 52 |
1/4 inch X 0.049 inch |
6.35mm X 1.24 mm |
| 53 |
1/4 inch X 0.065 inch |
6.35mm X 1.65 mm |
| 54 |
3/8 inch X 0.035 inch |
9.53mm X 0.89 mm |
| 55 |
3/8 inch X 0.049 inch |
9.53mm X 1.24 mm |
| 56 |
3/8 inch X 0.065 inch |
9.53mm X 1.65 mm |
| 57 |
1/2 inch X 0.035 inch |
12.70mm X 0.89 mm |
| 58 |
1/2 inch X 0.049 inch |
12.70mm X 1.24 mm |
| 59 |
1/2 inch X 0.065 inch |
12.70mm X 1.65 mm |
| 60 |
1/2 inch X 0.083 inch |
12.70mm X 2.11 mm |
|
|
| |
|
| |
|
|
ASEA METAL: Global Specialist in High-Precision Instrumentation Tubing
ASEA METAL is a leading global manufacturer and supplier specializing in
High-Precision Instrumentation Tubing,
the critical component for Petrochemical, Offshore, Semiconductor, and Power Generation industries.
We provide a comprehensive range of Seamless Stainless Steel and Nickel Alloy Tubes,
manufactured to the highest international standards including ASTM, ASME, JIS, and EN.
Our expertise covers a wide spectrum of sizes from 6mm to 38mm (OD) and
1/8" to 1" (OD), ensuring exceptional dimensional tolerances and superior
surface finishes for maximum corrosion resistance. Every batch is supplied with a full
EN 10204 3.1 MTC (Mill Test Certificate), guaranteeing reliability for
your high-pressure hydraulic and control systems.
Trust ASEA METAL for your 316L, Duplex, and Super Alloy tubing solutions.
|
|
[Technical Data] Chemical Composition (%) - ASTM A213 / A269
|
| Grade |
C (Max) |
Mn (Max) |
P (Max) |
S (Max) |
Si (Max) |
Ni |
Cr |
Mo |
| TP304/304L | 0.035 | 2.00 | 0.045 | 0.030 | 0.75 | 8.0-11.0 | 18.0-20.0 | - |
| TP316/316L | 0.035 | 2.00 | 0.045 | 0.035 | 0.75 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| TP321 | 0.080 | 2.00 | 0.045 | 0.035 | 0.75 | 9.0-12.0 | 17.0-19.0 | Ti 5x(C+N) |
| S31803 | 0.030 | 2.00 | 0.030 | 0.020 | 1.00 | 4.5-6.5 | 21.0-23.0 | 2.5-3.5 |
| S32750 | 0.030 | 1.20 | 0.035 | 0.020 | 0.80 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| Alloy 825 | 0.05 | 1.0 | 0.03 | 0.03 | 0.5 | 38.0-46.0 | 19.5-23.5 | 2.5-3.5 |
| Alloy 625 | 0.10 | 0.5 | 0.015 | 0.015 | 0.5 | 58.0 min | 20.0-23.0 | 8.0-10.0 |
| Monel 400 | 0.30 | 2.0 | - | 0.024 | 0.5 | 63.0 min | - | (Cu 28-34) |
|
|
[Mechanical Properties] Tensile, Yield & Hardness
|
| Material Grade |
Tensile Strength (min) |
Yield Strength (min) |
Elongation (min) |
Hardness (max) |
| TP316L / 304L | 485 MPa (70 ksi) | 170 MPa (25 ksi) | 35% | HRB 80 |
| Duplex S31803 | 620 MPa (90 ksi) | 450 MPa (65 ksi) | 25% | HRC 25 |
| Super Duplex S32750 | 795 MPa (116 ksi) | 550 MPa (80 ksi) | 15% | HRC 32 |
| Alloy C276 | 690 MPa (100 ksi) | 283 MPa (41 ksi) | 40% | HRB 100 |
| Titanium Gr.2 | 345 MPa (50 ksi) | 275 MPa (40 ksi) | 20% | HRB 80 |
| 316Ti (Titanium) | 515 MPa (75 ksi) | 205 MPa (30 ksi) | 35% | HRB 90 |
|
|
[Dimensional Tolerances] Cold Drawn Seamless Tube
|
| Outside Diameter (OD) |
OD Tolerance |
WT Tolerance |
Length Tolerance |
| Under 1/2" (12.7mm) |
+/- 0.13mm |
+/- 15% |
+ 3.18mm / -0mm |
| 1/2" to 1-1/2" (38.1mm) |
+/- 0.13mm |
+/- 10% |
+ 3.18mm / -0mm |
| Over 1-1/2" to 3.5" (88.9mm) |
+/- 0.25mm |
+/- 10% |
+ 4.76mm / -0mm |
|
|
[Usage & Applications] Industrial Scope
|
| Industry Field |
Key Application Keywords for Instrument Tube |
| Oil & Gas / Offshore |
Chemical injection lines, Umbilical lines, Control systems, Wellhead control panels, Hydraulic control. |
| Power Generation |
Steam tracing, Heat exchanger tubes, Analyzer lines, Boiler instrumentation, Condenser tubing. |
| Semiconductor / High Purity |
Gas delivery systems, BA/EP grade precise tubing, Ultra-high purity (UHP) gas lines. |
| Marine & Shipbuilding |
LNG carrier fuel piping, Sea water cooling systems, Hydraulic steering lines, Engine fuel injection. |
|
