| Tubes & Pipes |
| |
|
|
| |
|
| Precise Tubes |
| Application Field |
|
| |
| Material |
 Stainless |
304/304L, 304N, 316/316L, 316Ti, 310S, 321, |
| Duplex |
S31803, S32205, S32750 |
| Nonferrous metal |
C68700, C44300, C26000, C60800, C70600, C71500, Aluminium |
| Carbon steel |
A179/SA179, A106/SA106 Gr.B, STKM, STPG, T11 |
|
| |
| Application code |
| ASTM, ASME, AISI, DIN, JIS, KS |
| |
| Product tolerance |
| OD ± 0.02mm WT ± 0.02mm |
|
| Product Capacity & Specifications |
| Category |
Range & Tolerance |
| Outer Diameter (OD) |
0.5mm ~ 50.8mm (Specialized in Small Diameter) |
| Wall Thickness (WT) |
0.05mm ~ 3.0mm (Ultra-Thin Wall available) |
| Standard Tolerance |
+/- 0.02mm (Up to +/- 0.01mm upon request) |
| Surface Finish |
Bright Annealed (BA), Electrolytic Polishing (EP), Ra ≤ 0.2μm ~ 0.4μm
|
| Delivery Condition |
Soft Annealed, Half Hard, Full Hard (As per customer requirement) |
|
| |
| Technical Excellence & Quality Control |
ASEA METALは最も厳しい技術要件に応える高精度チューブを提供しています。当社の製品は厳格な多段階検査工程を経て、重要用途向けに欠陾ゼロの品質を確保します。
[Key Inspection & Testing]
Dimensional Inspection: Laser micrometer measurement for 0.02mm tolerance verification.
Eddy Current Test (ET): 100% Non-destructive testing to detect surface and internal flaws.
Mechanical Properties: Tensile strength, Yield strength, and Elongation testing (ASTM / JIS).
Chemical Analysis: PMI (Positive Material Identification) to guarantee exact alloy composition.
Internal Cleanliness: High-pressure ultrasonic cleaning and oil-free treatment for Semiconductor & Medical grades.
|
| |
| Industry-Specific Solutions |
◆ Semiconductor & Display
- High-purity stainless steel tubes (316L VIM+VAR)
- EP (Electropolished) tubes for gas delivery systems
- Exceptional internal surface roughness (Ra) control
|
◆ Medical & Healthcare
- Hypodermic needle tubing and surgical instrument parts
- Biocompatible materials with strict dimensional stability
- Burr-free cutting and specialized end-finishing
|

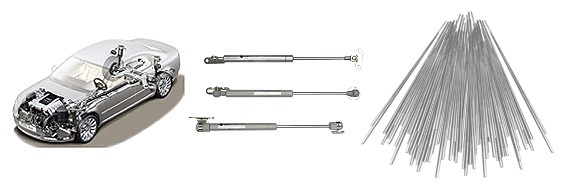

◆ Automotive & Aerospace
- Fuel injection lines and high-pressure hydraulic tubes
- Lightweight but high-strength alloy solutions
- Fatigue-resistant materials for vibration environments
|
◆ Food & Beverage Industry
- Sanitary tubing for dairy and brewery processes
- Corrosion-resistant alloys (Duplex/Super Duplex)
- Compliance with global hygiene standards
|
◆ Sanitary & Bio-Pharmaceutical (Specialized)
[International Standards]
- ASME BPE: Bioprocessing Equipment (SF1, SF4)
- 3-A Sanitary Standards for Dairy & Food
- DIN 11850 / EN 10357 (European Standard)
- ISO 2037 / SMS 3008 Stainless Steel Tubes
|
[Technical Key Features]
- Internal Surface: Ra < 0.4μm ~ 0.8μm
- Method: Mechanical & Electro-polishing
- Material: Low Carbon TP304L, TP316L
- Compliance: FDA & USP Class VI Materials
|
|
|
| |
| Customized Service & Global Supply |
At ASEA METAL, we understand that every project has unique requirements.
We offer:
- Small Batch Production: Flexible manufacturing for R&D and specialized niche markets.
- Custom Shapes: Oval, Square, Rectangular, and specialized profile tubes.
- Fast Turnaround: Optimized logistics for Japan, Korea, and Southeast Asia.
Contact our technical team today for a customized quotation and engineering support.
|
|
