High Precision (Precise) Tubes |
ASEA METAL supplies high precision (precise) tubes in Korea for small OD and thin wall requirements.
Typical tolerance is ±0.02 mm for OD/WT.
We support Bright Annealed (BA) tube and Electropolished (EP) tube options for semiconductor grade tubing, pharmaceutical grade stainless tube, and sanitary tubing, with inspection records and MTC documentation for export projects.
We manufacture precision tubes in Korea for small OD and tight tolerance stainless tube service, including high-purity tubing and ID (inner diameter) controlled tube requirements by specification. Typical stainless selections include ASTM A269 TP316L and ASTM A269 TP304L with BA/EP finish options as required; VOD / VIM-VAR remelt options can be reviewed by RFQ where applicable. Surface roughness targets (Ra value) and cleanliness packages (cleaning, nitrogen purge, end capping) can be aligned to your ITP for export deliveries. ASEA METAL is a Korean manufacturer focused on repeatable tolerances and surface condition.
Quick specs
| OD range (typ.) | 0.5 mm–50.8 mm (small diameter focus) |
| WT range (typ.) | 0.05 mm–3.0 mm (ultra-thin wall available) |
| Tolerance | OD/WT ±0.02 mm (±0.01 mm upon request) |
| Finish | BA (Bright Annealed), EP (Electropolished), Ra value target control by request |
| Delivery condition | Soft annealed / half hard / full hard |
| Documents | MTR/MTC (EN 10204 3.1) and inspection records by request |
Request a quotation (RFQ)
For a quick quotation, ASEA METAL recommends including OD, WT, length, quantity, grade, finish (BA/EP), Ra requirement (if any), delivery condition and inspection/documents.
Contact / RFQ
Can you support semiconductor / medical grade requirements?
Yes. BA/EP finish, Ra targets, internal cleanliness and inspection scope can be aligned to project requirements. Share your specification in the RFQ.
Can you offer tighter tolerance than ±0.02 mm?
In some sizes and grades, tighter tolerance such as ±0.01 mm can be reviewed. Please include target tolerance and application details.
|

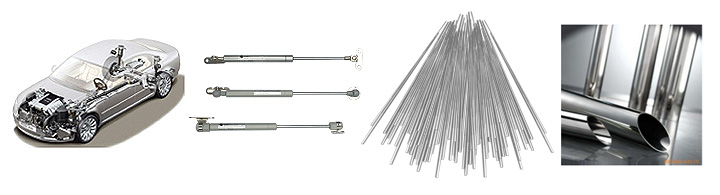

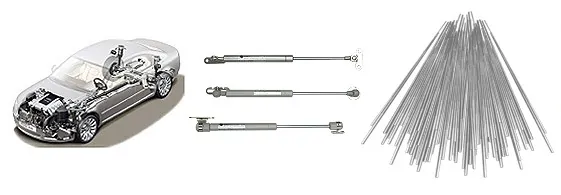

| Application Field |
| ● Dairy, Food & Beverage Industry |
● Medical appliance |
| ● Precise Mechanical Parts |
● Semi-Conductor Line |
●
Automobile, Air-Pressure Cylinder,
Automatic Machine
|
|
| |
| Material |
| ●Stainless |
304/304L, 304N, 316/316L, 316Ti, 310S, 321, |
| ●Duplex |
S31803, S32205, S32750 |
| ●Nonferrous metal |
C68700, C44300, C26000, C60800, C70600, C71500, Aluminium |
| ●Carbon steel |
A179/SA179, A106/SA106 Gr.B, STKM, STPG, T11 |
|
| |
| Application code |
| ASTM, ASME, AISI, DIN, JIS, KS |
| |
| Product tolerance |
| OD ± 0.02mm WT ± 0.02mm |
|
| Product Capacity & Specifications |
| Category |
Range & Tolerance |
| Outer Diameter (OD) |
0.5mm ~ 50.8mm (Specialized in Small Diameter) |
| Wall Thickness (WT) |
0.05mm ~ 3.0mm (Ultra-Thin Wall available) |
| Standard Tolerance |
+/- 0.02mm (Up to +/- 0.01mm upon request) |
| Surface Finish |
Bright Annealed (BA), Electrolytic Polishing (EP), Ra ≤ 0.2μm ~ 0.4μm
|
| Delivery Condition |
Soft Annealed, Half Hard, Full Hard (As per customer requirement) |
|
| |
| Technical Excellence & Quality Control |
ASEA METAL provides high-precision tubes that meet the most demanding technical requirements. Our products undergo a rigorous multi-stage inspection process to ensure zero-defect quality for critical applications.
[Key Inspection & Testing]
●Dimensional Inspection: Laser micrometer measurement for 0.02mm tolerance verification.
●Eddy Current Test (ET): 100% Non-destructive testing to detect surface and internal flaws.
●Mechanical Properties: Tensile strength, Yield strength, and Elongation testing (ASTM / JIS).
●Chemical Analysis: PMI (Positive Material Identification) to guarantee exact alloy composition.
●Internal Cleanliness: High-pressure ultrasonic cleaning and oil-free treatment for Semiconductor & Medical grades.
|
| |
| Industry-Specific Solutions |
◆ Semiconductor & Display
- High-purity stainless steel tubes (316L VIM+VAR)
- EP (Electropolished) tubes for gas delivery systems
- Exceptional internal surface roughness (Ra) control
|
◆ Medical & Healthcare
- Hypodermic needle tubing and surgical instrument parts
- Biocompatible materials with strict dimensional stability
- Burr-free cutting and specialized end-finishing
|
◆ Automotive & Aerospace
- Fuel injection lines and high-pressure hydraulic tubes
- Lightweight but high-strength alloy solutions
- Fatigue-resistant materials for vibration environments
|
◆ Food & Beverage Industry
- Sanitary tubing for dairy and brewery processes
- Corrosion-resistant alloys (Duplex/Super Duplex)
- Compliance with global hygiene standards
|
◆ Sanitary & Bio-Pharmaceutical (Specialized)
[International Standards]
- ASME BPE: Bioprocessing Equipment (SF1, SF4)
- 3-A Sanitary Standards for Dairy & Food
- DIN 11850 / EN 10357 (European Standard)
- ISO 2037 / SMS 3008 Stainless Steel Tubes
|
[Technical Key Features]
- Internal Surface: Ra < 0.4μm ~ 0.8μm
- Method: Mechanical & Electro-polishing
- Material: Low Carbon TP304L, TP316L
- Compliance: FDA & USP Class VI Materials
|
|
|
| |
| Customized Service & Global Supply |
At ASEA METAL, we understand that every project has unique requirements.
We offer:
- Small Batch Production: Flexible manufacturing for R&D and specialized niche markets.
- Custom Shapes: Oval, Square, Rectangular, and specialized profile tubes.
- Fast Turnaround: Optimized logistics for Japan, Korea, and Southeast Asia.
Contact our technical team today for a customized quotation and engineering support.
|
