What is a dish head (formed head)?

Dish heads (formed heads) are pressure-vessel or tank end closures such as hemispherical, ellipsoidal and conical heads, formed by cold spinning or hot forming depending on size, thickness and material.

Which materials and inspections are available?

Typical materials include carbon steel, alloy steel, stainless and duplex. Inspection and documents can include UT/PT/MT as required, marking/stamping per ITP, and MTC (EN 10204 3.1/3.2) by request.

What information should I include in an RFQ?

Please include ID/OD, head type (2:1 ellipsoidal, hemispherical, conical, etc.), thickness, material specification, design pressure/temperature, applicable code (e.g., ASME VIII), quantity and destination.

Dish Heads & Formed Heads Manufacturer in Korea

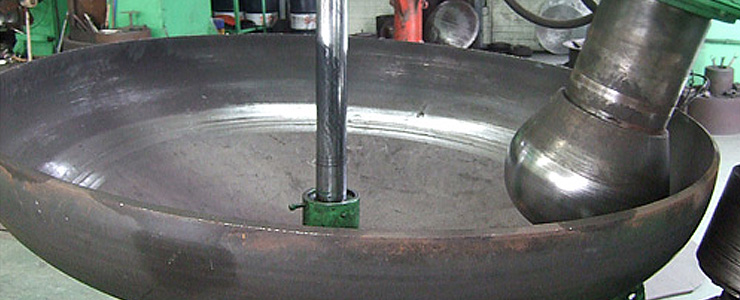

Dish head

Kind of Items

	Formed Head, Conical Head, Hemispherical Head, Ellipsoidal Head,
	Expansion Joint, Roll Pipes

Applicable Materials

	Carbon Steel		Alloy Steel
	Stainless Steel		Duplex Etc

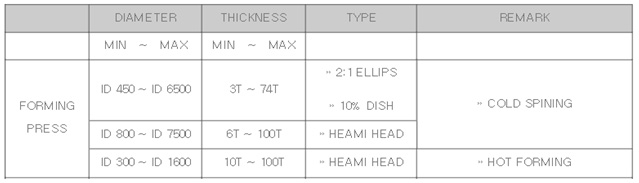

Production Ranges

CATEGORY	DIAMETER		THICKNESS		TYPE	REMARK
CATEGORY	MIN	MAX	MIN	MAX	TYPE	REMARK
FORMING PRESS	ID 450 ~ ID 6500		3T ~ 74T		" 2:1 ELLIPS " 10% DISH	COLD SPINNING
	ID 800 ~ ID 7500		6T ~ 100T		" HEMI HEAD	COLD SPINNING
	ID 300 ~ ID 1600		10T ~ 100T		" HEMI HEAD	HOT FORMING

Technical Highlights

ASEA METAL supplies dish heads / formed heads in Korea for pressure vessels and storage tanks. Supported by cold spinning and hot forming routes, inspection options and export documentation. We fabricate dish heads and formed heads in Korea for pressure vessels and storage tanks. Typical plate materials can include ASTM A516 Grade 70 and stainless plate to project specification where required. Forming route (cold spinning / hot forming) is selected by thickness, diameter and code requirements. Inspection options and MTC documentation (EN 10204 3.1 / 3.2) support export deliveries. ASEA METAL is a Korean factory supplier that reviews drawings to confirm feasibility and lead time.

Quick specs

Head types	Hemispherical, ellipsoidal (2:1), conical, formed heads
Related items	Expansion joints, roll pipes
Materials	Carbon steel, alloy steel, stainless steel, duplex & others
Forming routes	Cold spinning / hot forming (selected by size, thickness, material)
Inspection / docs	UT/PT/MT as required, marking per ITP, MTC (EN 10204 3.1/3.2) by request

Request a quotation (RFQ)

Send ID/OD, head type, thickness, material spec, design pressure/temperature, applicable code (e.g., ASME VIII), quantity and destination for a quick quotation from ASEA METAL. We will confirm feasibility and lead time.

Contact / RFQ

How do you choose cold spinning vs. hot forming?

We select the forming route based on diameter, thickness and material grade to achieve the required geometry and mechanical properties per your vessel code and project specification.

Can you support project codes and traceability?

Yes. Production can be aligned with codes such as ASME VIII and project requirements, with marking, inspection records and MTC issued as agreed.

	Forming routes: Cold spinning and hot forming are selected by diameter, thickness, and material grade so that final head geometry and mechanical properties meet your pressure-vessel or storage-tank design.
	Standards & documentation: Production can be aligned with common vessel codes (e.g. ASME VIII) and project specs; material certificates (MTC), heat treatment records, and inspection reports are issued as agreed in your order.
	NDT & marking: UT, PT, MT, or other tests and stamping / marking can be applied per your ITP; final dimensions and profiles are checked against approved drawings before release.
	What to send for a quote: ID/OD, crown height or type (e.g. 2:1 elliptical, hemispherical), thickness, material spec, design pressure/temperature, and code - we respond with feasibility and lead time.

Related topics & terms Quick Reference: Dish Head
ASEA METAL is a Korea fabricator for dish heads for pressure vessels to drawing (elliptical/torispherical/hemispherical).
Materials can include ASTM A516 Gr.70 with MTC (EN 10204 3.1) for export supply.
Procurement search terms: dish head Korea manufacturer, ASTM A516 Grade 70, pressure vessel head, ASME VIII, MTC EN10204 3.1.
