| HOME > PRODUCTS > Plates |
|
| Plates |

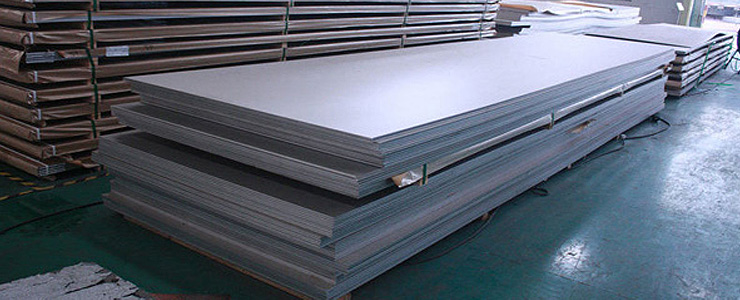

Steel Plates, Sheets & Coils |
| |
 |
| |
| TYPE |
COIL, SHEETS, PLATES, GALVANIZED PLATES |
| AVAILABLE MATERIAL |
CARBON STEEL, STAINLESS STEEL, ALLOY STEEL DUPLEX ETC |
|
| |
Carbon Steel
Low Alloy |
A283 - C, D, A36, A537, A515 - 60. 65. 70/N, A516 - 60, 65, 70/N |
| A203 - D, EM A204 - A, B, A387 - 2,12,22,21, 5 |
| Stainless Steel |
A240 - 405,410, 316,316L, 304, 304L, 321, 347, 317, 317L, 309S, 329 |
| Duplex and Superduplex |
A240 - S31803, S32750 |
| Nickel Alloy |
B463 - N08020, B333 - N10665, B575 - N06455, B168 - N06600
B409 - N08800, B424 - N08825, B127 - N04400, B162 - N02200 |
Copper and Copper Alloy
Naval Brass, Admiralty
Titanium Alloy
|
B171 - C46400, C44300, C61400, C70600, C71500 |
| B265, B551, B708 |
|
ASEA METAL supplies plates, sheets and coils in Korea for industrial plants and fabrication. Carbon, stainless, duplex and specialty alloys with documentation options for export projects.
We supply plates and sheets from Korea to support fabrication and machining projects. Typical pressure vessel plate includes ASTM A516 / ASME SA516 Grade 70, and structural plate can include ASTM A36 where specified. Stainless and duplex plate supply can be reviewed per project grade list. UT scope (e.g., ASTM A578) and MTC documentation (EN 10204 3.1 / 3.2) can be aligned to your ITP. ASEA METAL is a Korean supplier supporting export packing and documentation control.
Quick specs
| Forms | Coil / sheet / plate / galvanized (as specified) |
| Typical uses | Pressure vessels, tanks, structural and general fabrication |
| Materials | Carbon steel, stainless, alloy steel, duplex (plus Ni/Ti alloys by request) |
| Documents | MTC (EN 10204 3.1/3.2) by request, traceability support |
Request a quotation (RFQ)
Share grade/standard, thickness, width/length, finish, quantity, documents (MTC) and destination for a quick quotation from ASEA METAL. We will confirm availability and lead time.
Contact / RFQ
Do you support pressure vessel grades and export documentation?
Yes. Please specify the required standard/grade and documentation scope (e.g., MTC). We will confirm based on sourcing and availability.
Can you supply coils or cut-to-length sheets?
Yes. Please specify coil width or cut sizes, tolerances and preferred packing for shipment.
|
| |
Technical Specification & Global Standards for Steel Plates
ASEA METAL provides a comprehensive range of high-quality steel plates, sheets, and coils specifically designed for demanding industrial applications including Oil & Gas, Petrochemical, Power Generation, and Offshore structures. Our products are sourced from world-class mills (POSCO, Hyundai Steel, etc.) and come with full traceability.
1. Pressure Vessel & Boiler Quality Steel (ASTM/ASME/EN)
We specialize in Carbon Steel Plates for pressure vessels operating at intermediate and lower temperatures.
- ASTM A516 / SA516: Grade 60, 65, 70 (Normalized condition available). Ideal for moderate and lower temperature service.
- ASTM A537 / SA537: Class 1 & Class 2 Heat-treated carbon manganese silicon steel for pressure vessels.
- ASTM A285 / SA285: Grade C for low-to-intermediate tensile strength carbon steel.
- HIC Resistant Steel: Hydrogen Induced Cracking resistant steel for sour service environments in oil & gas projects.
2. Alloy Steel & High-Temperature Service (Chrome-Moly)
For elevated temperature and corrosion resistance, we supply Chromium-Molybdenum alloy plates.
- ASTM A387 / SA387: Grade 11, 12, 22, 5, 9, 91 (Class 1 and 2). Widely used in weldable pressure vessels and industrial boilers.
- ASTM A204 / SA204: Molybdenum alloy steel plates for high-temperature service.
3. Stainless Steel, Duplex & Super Duplex
Expertise in corrosion-resistant alloys for chemical processing and marine environments.
- Austenitic: 304, 304L, 316, 316L, 316Ti, 317L, 321, 347, 309S, 310S.
- Duplex & Super Duplex: UNS S31803 (F51), S32205 (F60), S32750 (F53), S32760 (F55). High strength and excellent pitting resistance (PREN > 40).
- Finishes: No.1 (Hot Rolled), 2B (Cold Rolled), BA, No.4, Hairline, Mirror (No.8).
4. Structural & Shipbuilding Steel
High-tensile steel for construction and offshore platforms.
- ASTM A36 / A572: Grade 50, 60, 65. General structural steel.
- Shipbuilding Grades: ABS, DNV, LR, BV, GL, KR, NK, RINA (Grade A, B, D, E, AH32, DH36, EH36).
5. Value-Added Services & Quality Control
To satisfy international buyer requirements, we provide rigorous quality assurance:
- Certifications: EN10204 3.1 & 3.2 (with Third Party Inspection).
- Non-Destructive Testing (NDT): Ultrasonic Testing (UT) to ASTM A435/A578, Magnetic Particle (MT), Dye Penetrant (PT).
- Mechanical Testing: Charpy V-Notch Impact Test, Hardness Test, Tensile Test, Bend Test, Z-test (Through thickness properties).
- Processing: CNC Plasma/Oxy-fuel cutting, Water-jet cutting, Laser cutting, Edge beveling (V, U, X types), Shot-blasting & Priming.
Global Supply Scope: We export worldwide including Middle East (UAE, Saudi Arabia, Kuwait), South East Asia (Singapore, Vietnam, Indonesia), Europe, and the Americas. Optimized logistics for containerized or break-bulk shipments are available.
Quick Reference: Industrial Steel Specifications
Our inventory and supply capability include a wide range of global standards to meet your project requirements.
Key Product Categories:
ASTM A516 Grade 70 Plate, ASME SA516-70 for Pressure Vessels, ASTM A36 Structural Steel,
Stainless Steel 316L/304L Sheets, S32750 Super Duplex, S31803 Duplex Steel,
Nickel Alloy B463, Monel 400, Inconel 600, Incoloy 825, Titanium Grade 2 (B265),
Boiler Quality Steel, HIC Resistant Steel, Chrome Moly A387 Grade 22,
Shipbuilding Steel (ABS/DNV/LR/BV), High Tensile Steel S355JR, and AR400 Wear Resistant Plates.
