HOME > PRODUCTS > Flange & Tube SheetHOME > PRODUCTS > FLG & T/S
ASEA METAL — Your single source of piping system components

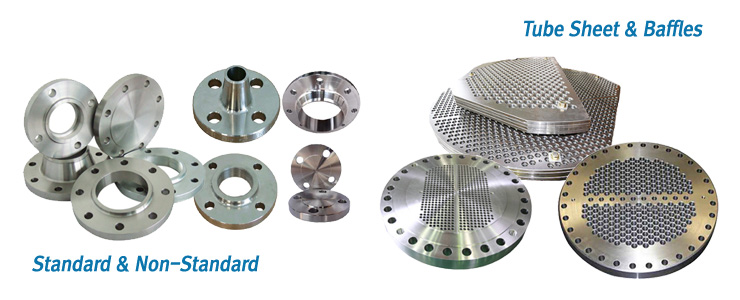

Flange & Tube Sheet

Flange & Tube Sheet

Flanges - ASEA METAL

Flanges

Tube sheet and baffle - ASEA METAL

Tube sheet & Baffle
Available in a full line of quality steel pressure flanges. Our flanges are manufactured in accordance with ASTM, ANSI, API, MSS, DIN and other engineering standards
Kind of Items

Welding Neck Flange Nozzle Neck Flange
Slip On Flange Shell/Clannel Flange
Blind Flange Weldolet Flange
Long Welding Neck Flange Square Flange
Orifice Flange Spectacle Flange

Applicable Standard

MSS SP-44(12"~60") AWWA C207(1/2"~96")
API 605(26"~60") BS 3293(26"~48")

Applicable Materials

Carbon Steel (A105, A226 CL2/CL4) Duplex (A182 F51)
Low Temp Carbon Steel (A350 LF2,LF3) Lined Materials
High Yield Carbon Steel(A694 F52/56/60/65/70) Clad Materials
Stainless Steel(A182F 304/L, 316/L, 317, 321, 310, 347)
Alloy Steel(A182 F1, F5, F9, F11, F12, F22, F91)
Explosive clad Super Duplex (A182 F44)

ASEA METAL supplies flanges, tube sheets and baffles in Korea for piping and heat-exchanger projects. Wide range of standards, materials and inspection/document options for export deliveries. We manufacture and supply flanges, tube sheets and baffles in Korea for piping and heat exchanger projects. Typical carbon steel flange material includes ASTM A105, with stainless such as ASTM A182 F316L and duplex such as ASTM A182 F51/F44 reviewed by specification. Facing, drilling, and dimensional requirements are aligned to the ordered standard and drawing. We support NDT scope and MTC (EN 10204 3.1 / 3.2) for export deliveries. ASEA METAL is a Korean manufacturer prepared to quote per flange list and project class.
Quick specs
ProductsFlanges, tube sheet, baffle
Flange typesWN / SO / BL / orifice / nozzle neck (and project items)
StandardsASTM, ANSI/ASME, API, MSS, DIN (as specified)
MaterialsASTM A105, stainless, duplex, clad & others (per spec)
Inspection / docsMTC (EN 10204 3.1/3.2) by request, NDT as required, traceability support
Request a quotation (RFQ)
Please share flange type, NPS, pressure class, facing (RF/RTJ/FF), material grade, quantity, standard, drilling requirements, inspection/docs and destination for a quick quotation from ASEA METAL.
Contact / RFQ
Can you supply tube sheets and baffles with drilling?

Yes. Please provide drawing requirements (hole pattern, tolerances, material, thickness). We will confirm feasibility, inspection scope and lead time.

Do you support MTC and NDT?

Yes. MTC (EN 10204 3.1/3.2) and NDT options can be provided as required by your order and ITP.

Technical Highlights

Standards & pressure class: Flanges are supplied to ANSI B16.5 / B16.47, API 605, MSS SP-44, AWWA, and other listed specs; pressure class, facing (RF, FF, RTJ), bore, and drilling are checked against your purchase order and drawings.
Tube sheets & baffles: Hole patterns, ligaments, pass-partition slots, and support notches can be machined per TEMA or project layouts; clad and solid plate options follow your corrosion and strength requirements.
Materials & certificates: Carbon, low-temp, high-yield, stainless, duplex, alloy, and clad grades are offered with MTC to EN 10204 type 3.1/3.2 when specified; PMI and hardness checks are available on request.
What to send for a quote: NPS, class, flange type (WN, SO, blind, etc.), facing, schedule/bore, material spec, and standard - for tube sheets send drawing PDF with tube layout and plate thickness - we reply with feasibility and delivery.
